Old D5 PCB (CP80)

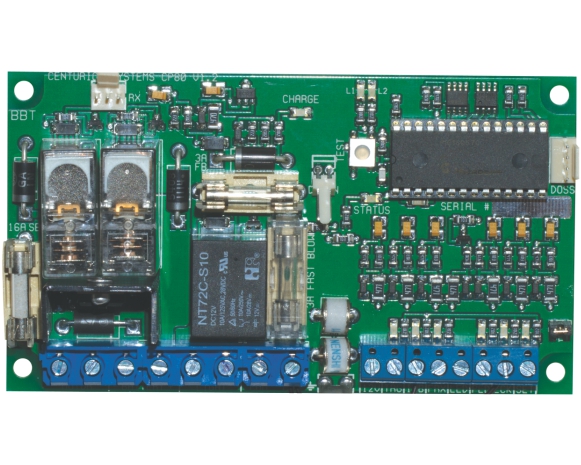

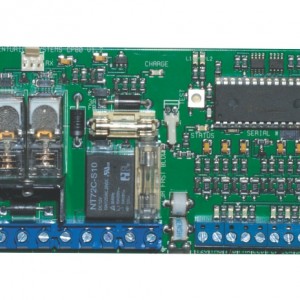

CP80 DC Motor Controller (Old D5 PCB)

SKU: GM5PCBCP80. Category: , .

Product Description

Electronic controller for use with the D3 and D5 range of sliding gate motors.

Main features

  • Proven lightning protection
  • Trigger input with local test button– useful for testing the operation of the device when a transmitter is not available
  • Pedestrian Opening input – prevents unauthorised vehicle access
  • Safety Beam input – connecting infrared Safety Beams dramatically increases the safety of the automated system
  • Local and remote multi-function Gate Status LED
  • Free-exit input (only opens gate) – ideal for fitting free-exit ground loops or push buttons in townhouse and high-volume vehicle access applications
  • Holiday Lockout input – ensures that gate cannot be opened when home owners are away
  • Timed potential-free contact (e.g. Courtesy Lights)
  • Low-voltage switching of potential-free contact
  • Selectable/adjustable Autoclose timer (1 – 255 seconds)
  • Override of Autoclose timer via trigger input
  • Local diagnostic LEDs for easy programming
